6. External Interfaces¶
6.1. Introduction¶
In the earlier sections in this document, the various resources and capabilities of the Cloud Infrastructure were catalogued and the workloads profiled with respect to those capabilities. The intent behind this section and an “API Layer” is to similarly provide a single place to catalogue, and thereby codify, a common set of open APIs to access (that is, request, consume, control, and so on) the aforementioned resources, be they directly exposed to the workloads, or purely internal to the Cloud Infrastructure.
This section and document also aim to ensure that the APIs adopted for the Cloud Infrastructure implementations are open and not proprietary, in support of compatibility, component substitution, and the ability to realize the maximum value from existing and future test heads and harnesses.
This section aims to catalogue the APIs. It does not aim to reprint the APIs, as this would make the maintenance of this section impractical and its length disproportionate within the Reference Model document. Instead, the APIs selected for the Cloud Infrastructure implementations and specified in this section will be incorporated by reference and URLs for the latest authoritative versions of the APIs, provided in the References section of this document.
Although this document does not attempt to reprint the APIs themselves, where appropriate and where the mapping of the resources and capabilities within the Cloud Infrastructure to objects in the APIs would be otherwise ambiguous, this section will provide explicit identification and mapping.
In addition to the raw or base-level Cloud Infrastructure functionality to API and object mapping, this section aims to specify an explicit, normalized set of APIs and mappings to control the logical interconnections and relationships between these objects, notably, but not limited to, support of Service Function Chaining (SFC) and other networking and network management functionalities.
This section specifies the abstract interfaces (API, CLI, and so on) supported by the Cloud Infrastructure Reference Model. The purpose of this section is to define and catalogue a common set of open (not proprietary) APIs, of the following types:
Cloud Infrastructure APIs: These APIs are provided to the workloads (that is, exposed), by the infrastructure, in order for workloads to access (that is, request, consume, control, and so on) Cloud Infrastructure resources.
Intra-Cloud Infrastructure APIs: These APIs are provided and consumed directly by the infrastructure. These APIs are purely internal to the Cloud Infrastructure and are not exposed to the workloads.
Enabler Services APIs: These APIs are provided by non-Cloud Infrastructure services and provide capabilities that are required for a majority of workloads, such as DHCP, DNS, NTP, DBaaS, and so on.
6.2. Cloud Infrastructure APIs¶

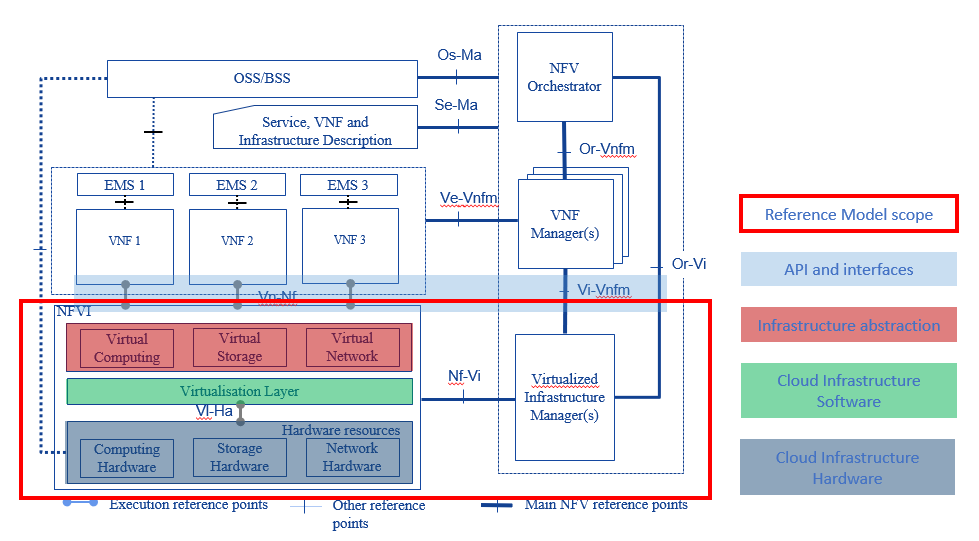

The Cloud Infrastructure APIs consist of sets of APIs that are externally and internally visible. The externally visible APIs are made available for the orchestration and management of the execution environments that host the workloads, while the internally visible APIs support actions on the hypervisor and the physical resources. The ETSI NFV Reference MANO Architecture (Figure 6.1) shows a number of Interface points where specific APIs, or sets of APIs, are supported. For the scope of the reference model, the relevant interface points are shown in Table 6-1.
Interface point |
Cloud Infrastructure exposure |
Interface between |
Description |
---|---|---|---|
Vi-Ha |
Internal NFVI |
Software layer and hardware resources |
1. Discover/collect the resources and their configuration information. 2. Create an execution environment (for example, VM) for the workloads (VNF). |
Vn-Nf |
External |
NFVI and VM (VNF) |
Here, VNF represents the execution environment. The interface is used to specify the interactions between the VNF and the abstract NFVI accelerators. The interfaces can be used to discover, configure, and manage these accelerators, and for the VNF to register/ deregister for receiving accelerator events and data. |
NF-Vi |
External |
NFVI and VIM |
1. Discover/collect physical/virtual resources and their configuration information. 2. Manage (create, resize, suspend, unsuspend, reboot, and so on) physical/virtualised resources. 3. Configuration changes of physical/virtual resources. 4. Physical/Virtual resource configuration. |
Or-Vi |
External |
VNF orchestrator and VIM |
See below |
Vi-Vnfm |
External |
VNF manager and VIM |
See below |
Table 6-1: NFVI and VIM interfaces with other system components in the ETSI NFV architecture
The Or-Vi and Vi-Vnfm both specify interfaces provided by the VIM and are therefore related. The Or-Vi reference point is used for exchanges between the NFV orchestrator and the VIM, and supports the interfaces listed below. Virtualised resources refer to virtualised compute, storage, and network resources:
Software image management
Virtualised resources information management
Virtualised resources capacity management (only VNF orchestrator and VIM (Or-Vi))
Virtualised resources management
Virtualised resources change management
Virtualised resources reservation management
Virtualised resources quota management
Virtualised resources performance management
Virtualised resources fault management
Policy management
Network forwarding path (NFP) management (only VNF orchestrator and VIM (Or-Vi))
6.2.1. Tenant-level APIs¶
In the abstraction model of the Cloud Infrastructure (see Chapter 3), a conceptual model of a tenant represents the slice of a cloud zone dedicated to a workload. This slice, the tenant, is composed of virtual resources being utilized by workloads within that tenant. The tenant has an assigned quota of virtual resources. A set of users can perform operations according to their assigned roles, and the tenant exists within a cloud zone. The APIs specify the allowed operations on the tenant, including its component virtual resources. The different APIs can only be executed by users with the appropriate roles. For example, a tenant may only be allowed to be created and deleted by the cloud zone administrators, while the virtual compute resources could be allowed to be created and deleted by the tenant administrators.
The creation of a workload in a tenant also requires APIs for the management (creation, deletion, and operation) of the tenant, software flavours (see Chapter 5), operating system and workload images (“Images”), identity and authorization (“Identity”), virtual resources, security, and the workload application (“stack”).
A virtual compute resource is created according to the flavour template, specifying the compute, memory, and local storage capacity. It is launched using an image with access and security credentials. Once launched, it is referred to as a virtual compute instance or simply “Instance”. Instances can be launched by specifying the compute, memory, and local storage capacity parameters, instead of an existing flavour. Reference to flavours covers the situation where the capacity parameters are specified. IP addresses and storage volumes can be attached to a running Instance.
Resource |
Create |
List |
Attach |
Detach |
Delete |
Notes |
---|---|---|---|---|---|---|
Flavour |
||||||
Image |
Created and deleted by the appropriate administrators. |
|||||
Key pairs |
||||||
Privileges |
Created and managed by the Cloud Service Provider (CSP) administrators. |
|||||
Role |
Created and deleted by authorized administrators where roles are assigned privileges and mapped to the users in scope. |
|||||
Security groups |
Created and deleted only by the VDC administrators. |
|||||
Stack |
Created and deleted by VDC users with the appropriate role. |
|||||
Virtual storage |
Created and deleted by VDC users with the appropriate role. |
|||||
User |
Created and deleted only by the VDC administrators. |
|||||
Tenant |
Created and deleted only by the Cloud Zone administrators. |
|||||
Virtual compute |
Created and deleted by VDC users with the appropriate role. Additional operations include suspend and unsuspend. |
|||||
Virtual network |
Created and deleted by VDC users with the appropriate role. |
Table 6-2: API types for a minimal set of resources
Table 6-2 specifies a minimal set of operations for a minimal set of resources that are needed to orchestrate the workloads. The APIs for the listed operations are specified in the Reference Architectures. Each listed operation can have a number of associated APIs with a different set of parameters. For example, create a virtual resource using an image or a device.
6.2.2. Hardware acceleration interfaces¶
Acceleration Interface Specifications ETSI GS NFV-IFA 002 [26] defines a technology- and implementation-independent virtual accelerator, and the accelerator interface requirements and specifications that would allow a workload to leverage a virtual accelerator. The virtual accelerator is modelled on extensible para-virtualised devices (EDP). ETSI GS NFV-IFA 002 [26] specifies the architectural model in Chapter 4 and the abstract interfaces for management, configuration, monitoring, and data exchange in Chapter 7.
ETSI NFV-IFA 019 3.1.1 [27] has defined a set of technology-independent interfaces for acceleration resource lifecycle management. These operations allow allocation, release, and querying of acceleration resources, get and reset statistics, subscribe/unsubscribe (terminate) to fault notifications, notify (only used by NFVI), and get alarm information.
These acceleration interfaces are summarized here in Table 6.3 for your convenience only.
Request |
Response |
From, To |
Type |
Parameter |
Description |
---|---|---|---|---|---|
InitAccRequest |
InitAccResponse |
VNF → NFVI |
Input |
accFilter |
The accelerator subsystems to initialize and retrieve their capabilities. |
Filter |
accAttributeS elector |
The attribute names of the accelerator capabilities. |
|||
Output |
accCapabiliti es |
The acceleration subsystem capabilities. |
|||
RegisterForAccEventRe quest |
RegisterForAccEventRes ponse |
VNF → NFVI |
Input |
accEvent |
The event in which the VNF is interested. |
Input |
vnfEventHandl erId |
The handler for the NFVI to use when notifying the VNF of the event. |
|||
AccEventNotificationR equest |
AccEventNotificationRe sponse |
NFVI → VNF |
Input |
vnfEventHandl erId |
The handler used by the VNF registering for this event. |
Input |
accEventMetaD ata |
||||
DeRegisterForAccEvent Request |
DeRegisterForAccEventR esponse |
VNF → NFVI |
Input |
accEvent |
The event from which the VNF is deregistering. |
ReleaseAccRequest |
ReleaseAccResponse |
VNF → NFVI |
|||
ModifyAccConfiguratio nRequest |
ModifyAccConfiguration Response |
VNF → NFVI |
Input |
accConfigurat ionData |
The configuration data for the accelerator. |
Input |
accSubSysConf igurationData |
The configuration data for the accelerator subsystem. |
|||
GetAccConfigsRequest |
GetAccConfigsResponse |
VNF → NFVI |
Input |
accFilter |
The filter for the subsystems from which the configuration data is requested. |
Input |
accConfigSele ctor |
The attributes of the configuration types. |
|||
Output |
accConfigs |
The configuration information (only for the specified attributes) for the specified subsystems. |
|||
ResetAccConfigsReque st |
ResetAccConfigsRespon se |
VNF → NFVI |
Input |
accFilter |
The filter for the subsystems for which the configuration is to be reset. |
Input |
accConfigSele ctor |
The attributes of the configuration types whose values will be reset. |
|||
AccDataRequest |
AccDataResponse |
VNF → NFVI |
Input |
accData |
The data (metadata) sent to the accelerator. |
Input |
accChannel |
The channel to which the data is to be sent. |
|||
Output |
accData |
The data from the accelerator. |
|||
AccSendDataRequest |
AccSendDataResponse |
VNF → NFVI |
Input |
accData |
The data (metadata) sent to the accelerator. |
Input |
accChannel |
The channel to which the data is to be sent. |
|||
AccReceiveDataRequest |
AccReceiveDataResponse |
VNF → NFVI |
Input |
maxNumberOfDa taItems |
The maximum number of data items to be received. |
Input |
accChannel |
Channel data is requested from the accelerator. |
|||
Output |
accData |
Data is received from the accelerator. |
|||
RegisterForAccDataAva ilableEventRequest |
RegisterForAccDataAvai lableEventResponse |
VNF → NFVI |
Input |
regHandlerId |
Registration identifier. |
Input |
accChannel |
Channel where the event is requested. |
|||
AccDataAvailableEvent NotificationRequest |
AccDataAvailableEventN otificationResponse |
NFVI → VNF |
Input |
regHandlerId |
Reference used by the VNF when registering for the event. |
DeRegisterForAccDataA vailableEventRequest |
DeRegisterForAccDataAv ailableEventResponse |
VNF → NFVI |
Input |
accChannel |
Channel related to the event. |
AllocateAccResourceRe quest |
AllocateAccResourceRes ponse |
VIM → NFVI |
Input |
attachTarget Info |
The resource to which the accelerator is to be attached (for example, VM). |
Input |
accResourceI nfo |
Accelerator information. |
|||
Output |
accResourceId |
ID, if successful. |
|||
ReleaseAccResourceReq uest |
ReleaseAccResourceResp onse |
VIM → NFVI |
Input |
accResourceId |
ID of the resource to be released. |
QueryAccResourceReque st |
QueryAccResourceRespon se |
VIM → NFVI |
Input |
hostId |
ID of the specified host. |
Input |
Filter |
Specifies the accelerators to which the query applies. |
|||
Output |
accQueryResu lt |
Details of the accelerators matching the input filter located in the selected host. |
|||
GetAccStatisticsReque st |
GetAccStatisticsRespon se |
VIM → NFVI |
Input |
accFilter |
Accelerator subsystems from which data is requested. |
Input |
accStatSelect or |
Attributes of AccStatistics whose data is returned. |
|||
Output |
accStatistics |
Statistics data of the accelerators matching the input filter located in the selected host. |
|||
ResetAccStatisticsReq uest |
ResetAccStatisticsResp onse |
VIM → NFVI |
Input |
accFilter |
Accelerator subsystems for which the data is to be reset. |
Input |
accStatSelect or |
Attributes of AccStatistics whose data will be reset. |
|||
SubscribeRequest |
SubscribeResponse |
VIM → NFVI |
Input |
hostId |
ID of the specified host. |
Input |
Filter |
Specifies the accelerators and the related alarms. The filter can include accelerator information, severity of the alarm, and so on. |
|||
Output |
Subscriptio nId |
Identifier of the successfully created subscription. |
|||
UnsubscribeRequest |
UnsubscribeResponse |
VIM → NFVI |
Input |
hostId |
ID of the specified host. |
Input |
Subscription Id |
Identifier of the subscription to be unsubscribed. |
|||
Notify |
NFVI → VIM |
NFVI notifies an alarm to VIM. |
|||
GetAlarmInfoRequest |
GetAlarmInfoResponse |
VIM → NFVI |
Input |
hostId |
ID of the specified host. |
Input |
Filter |
Specifies the accelerators and the related alarms. The filter can include accelerator information, severity of the alarm, and so on. |
|||
Output |
Alarm |
Information about the alarms, if the filter matches an alarm. |
|||
AccResourcesDiscovery Request |
AccResourcesDiscoveryR esponse |
VIM → NFVI |
Input |
hostId |
ID of the specified host. |
Output |
discoveredAcc ResourceInfo |
Information on the acceleration resources discovered within the NFVI. |
|||
OnloadAccImageRequest |
OnloadAccImageResponse |
VIM → NFVI |
Input |
accResourceId |
Identifier of the chosen accelerator in the NFVI. |
Input |
accImageInfo |
Information about the acceleration image. |
|||
Input |
accImage |
The binary file of the acceleration image. |
Table 6-3: Hardware acceleration interfaces in the ETSI NFV architecture
6.3. Intra-Cloud Infrastructure interfaces¶
6.3.1. Hypervisor hardware interface¶
Table 6-1 lists a number of NFVI and VIM interfaces, including the internal VI-Ha interface. The VI-Ha interface allows the hypervisor to control the physical infrastructure. The hypervisor acts under VIM control. The VIM issues all requests and responses using the NF-VI interface. Requests and responses include commands, configuration requests, policies, updates, alerts, and response to infrastructure results. The hypervisor also provides information about the health of the physical infrastructure resources to the VM. All these activities, on behalf of the VIM, are performed by the hypervisor using the VI-Ha interface. While no abstract APIs have yet been defined for this internal VI-Ha interface, ETSI GS NFV-INF 004 [28] defines a set of requirements and details of the information that is required by the VIM from the physical infrastructure resources. Hypervisors utilize various programs to get this data, including BIOS, IPMI, PCI, I/O Adapters/Drivers, and so on.
6.4. Enabler services interfaces¶
In order to function properly, an operational cloud needs a set of standard services. These services comprise NTP for time synchronization, DHCP for IP address allocation, DNS for obtaining IP addresses for domain names, and LBaaS (version 2) to distribute incoming requests amongst a pool of designated resources.
