5. Feature Set and Requirements from Infrastructure¶

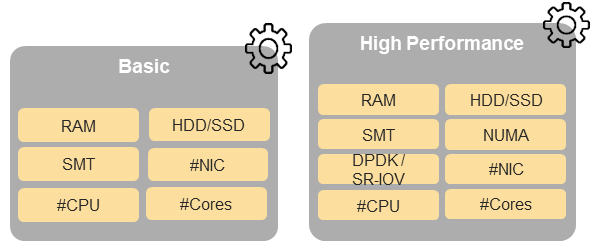

A profile Profiles, Profile Extensions & Flavours specifies the configuration of a Cloud Infrastructure node (host or server). Profile Extensions (specialisations) may specify additional configurations. Workloads use profiles to describe the configuration of nodes on which they can be hosted to execute on. Workload flavours provide a mechanism to specify the VM or Pod sizing information to host the workload. Depending on the requirements of the workloads, a VM or a Pod is deployed according to the specified flavour information on a node configured according to the specified profile. Not only do the nodes (the hardware) have to be configured but some of the capabilities also need to be configured in the software layers (such as Operating System and Virtualisation Software). Therefore, a profile can be defined in terms of the configuration required in the software layers, the Cloud Infrastructure software profile, and the hardware, the Cloud Infrastructure Hardware Profile.
5.1. Cloud Infrastructure software profile description¶

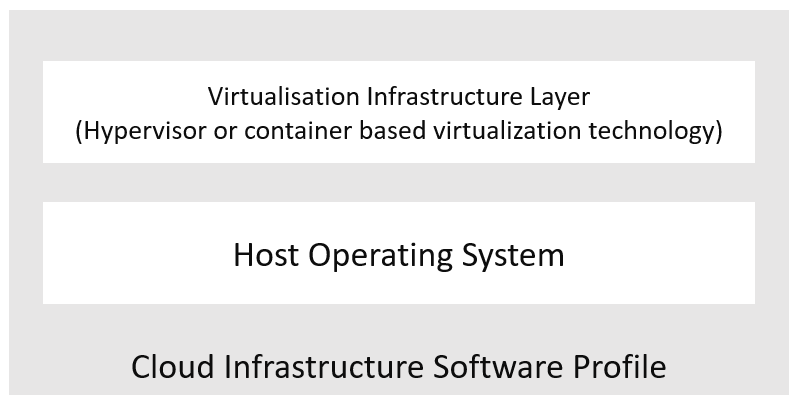

The Cloud Infrastructure software layer is composed of the following two layers:
The virtualisation infrastructure layer. This layer is based on hypervisor virtualisation technology or container-based virtualisation technology. Container virtualisation can be nested in hypervisor-based virtualisation.
The host operating system (OS) layer.
Ref |
Cloud Infrastructure software |
Type |
Definition/notes |
Capabilities reference (1) |
---|---|---|---|---|
infra.sw.001 |
Host operating system |
<value> |
Values, such as Ubuntu20.04, Windows 10 Release #, and so on. |
e.cap.021 |
infra.sw.002 |
Virtualisation infrastructure layer |
<value> |
Values, such as KVM, Hyper-V, Kubernetes, and so on. |
e.cap.022 |
(1) Reference to the capabilities defined in Infrastructure Capabilities, Measurements and Catalogue.

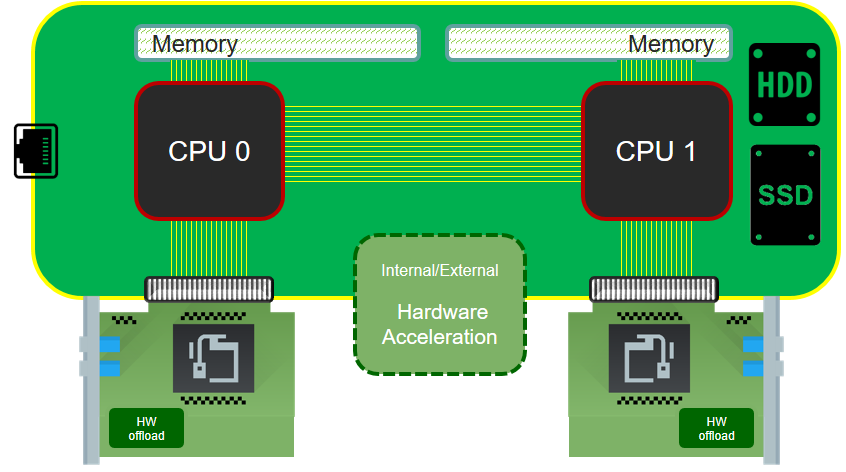

For a host (a compute node or a physical server), the virtualisation layer is an abstraction layer between the hardware components (compute, storage, and network resources) and the virtual resources allocated to a VM or a Pod. Figure 5.2 represents the virtual resources (virtual compute, virtual network, and virtual storage) allocated to a VM or a Pod and managed by the Cloud Infrastructure manager.

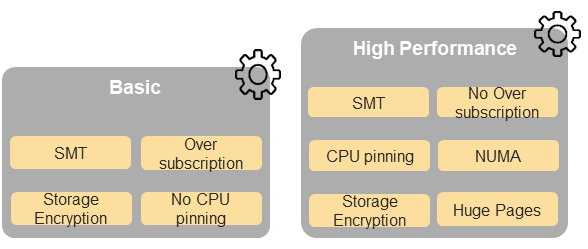

A Cloud Infrastructure software profile is a set of features, capabilities, and metrics offered by a Cloud Infrastructure software layer and configured in the software layers (the Operating System (OS) and the virtualisation software (such as the hypervisor)). Figure 5.3 depicts a high-level view of the basic and high-performance Cloud Infrastructure profiles.

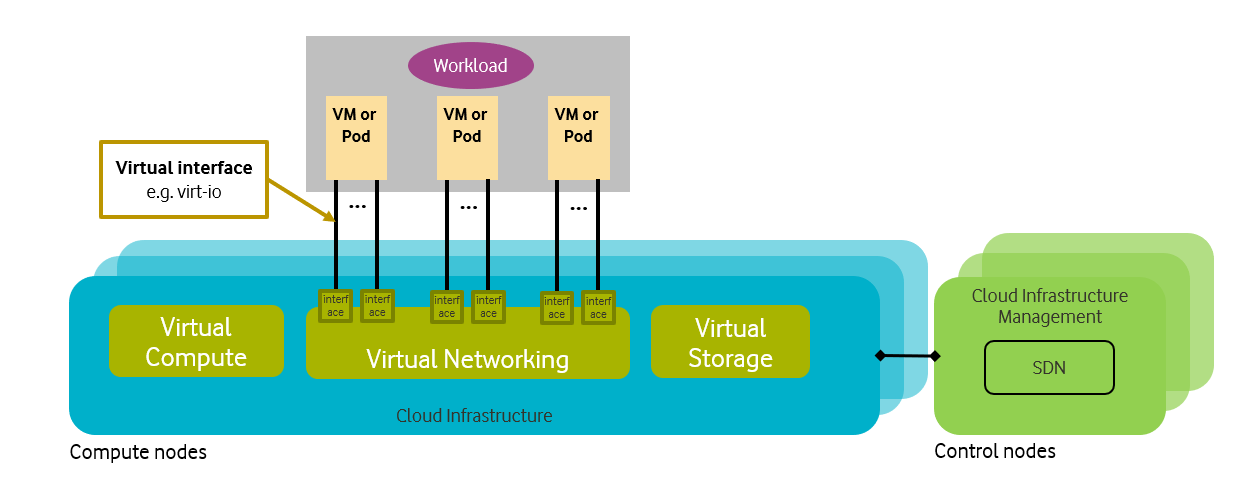

The following sections detail the Cloud Infrastructure software profile capabilities according to the type of virtual resource.
5.1.1. Virtual compute profiles¶
Table 5-1 and Table 5-2 depict the features related to virtual compute.
Reference |
Feature |
Type |
Description |
Capabilities reference |
---|---|---|---|---|
infra.com.cfg.001 |
CPU allocation ratio |
<value> |
The number of virtual cores per physical core. |
i.cap.016 |
infra.com.cfg.002 |
NUMA alignment |
Yes/No |
Support of NUMA at the host OS and the virtualisation layers, in addition to the hardware. |
e.cap.007 |
infra.com.cfg.003 |
CPU pinning |
Yes/No |
This feature binds a vCPU to a physical core or an SMT thread. It is configured in the OS and virtualisation layers. |
e.cap.006 |
infra.com.cfg.004 |
Huge pages |
Yes/No |
The ability to manage huge pages of memory. It is configured in the OS and virtualisation layers. |
i.cap.018 |
infra.com.cfg.005 |
Simultaneous multithreading (SMT) |
Yes/No/Optional |
SMT allows multiple execution threads to be executed on a single physical CPU core. It is configured in the OS, in addition to the hardware. |
e.cap.018 |
Table 5-1: Virtual compute features.
Reference |
Feature |
Type |
Description |
Capabilities reference |
---|---|---|---|---|
infra.com.acc.cfg .001 |
IPSec acceleration |
Yes/No/Optional |
IPSec acceleration |
e.cap.008 |
infra.com.acc.cfg .002 |
Transcoding acceleration |
Yes/No/Optional |
Transcoding acceleration |
e.cap.010 |
infra.com.acc.cfg .003 |
Programmable acceleration |
Yes/No/Optional |
Programmable acceleration |
e.cap.011 |
infra.com.acc.cfg .004 |
GPU |
Yes/No/Optional |
Hardware coprocessor |
e.cap.014 |
infra.com.acc.cfg .005 |
FPGA/other acceleration H/W |
Yes/No/Optional |
This is non-specific hardware. These capabilities generally require hardware-dependent drivers to be injected into the workloads. |
e.cap.016 |
Table 5-2: Virtual compute acceleration features.
5.1.2. Virtual storage profiles¶
Table 5-3 and Table 5-4 depict the features related to virtual storage.
Reference |
Feature |
Type |
Description |
---|---|---|---|
infra.stg.cfg.001 |
Catalogue storage types |
Yes/No |
The support of storage types described in the catalogue |
infra.stg.cfg.002 |
Storage block |
Yes/No |
|
infra.stg.cfg.003 |
Storage with replication |
Yes/No |
|
infra.stg.cfg.004 |
Storage with encryption |
Yes/No |
Table 5-3: Virtual storage features.
Reference |
Feature |
Type |
Description |
---|---|---|---|
infra.stg.acc.cfg.001 |
Storage IOPS oriented |
Yes/No |
|
infra.stg.acc.cfg.002 |
Storage capacity oriented |
Yes/No |
Table 5-4: Virtual storage acceleration features.
5.1.3. Virtual networking profiles¶
Table 5-5 and Table 5-6 depict the features related to virtual networking.
Reference |
Feature |
Type |
Description |
Capabilities Reference |
---|---|---|---|---|
infra.net.cfg.001 |
Connection point interface IO virtualisation |
IO virtualisation |
For example, virtio1.1. |
|
infra.net.cfg.002 |
Overlay protocol |
Protocols |
The overlay network encapsulation protocol needs to enable ECMP in the underlay to take advantage of the scale-out features of the network fabric. |
|
infra.net.cfg.003 |
NAT |
Yes/No |
Support of network address translation. |
|
infra.net.cfg.004 |
Security groups |
Yes/No |
The set of rules managing incoming and outgoing network traffic. |
|
infra.net.cfg.005 |
Service function chaining |
Yes/No |
Support of service function chaining (SFC). |
|
infra.net.cfg.006 |
Traffic patterns symmetry |
Yes/No |
Traffic patterns should be optimal, in terms of packet flow. North-south traffic must not be concentrated in specific elements in the architecture, making those critical choke-points, unless strictly necessary (for example, when NAT 1:many is required). |
Table 5-5: Virtual networking features.
Reference |
Feature |
Type |
Description |
Capabilities reference |
---|---|---|---|---|
infra.net.acc.cfg.001 |
vSwitch optimisation |
Yes/No and SW optimisation |
For example, DPDK. |
|
infra.net.acc.cfg.002 |
SmartNIC (for HW offload) |
Yes/No |
HW offload |
|
infra.net.acc.cfg.003 |
Crypto acceleration |
Yes/No |
|
|
infra.net.acc.cfg.004 |
Crypto acceleration interface |
Yes/No |
Table 5-6: Virtual networking acceleration features.
5.1.4. Security¶
For details, see section 7 Security.
5.1.5. Platform services¶
This section details the services that may be made available to the workloads by the Cloud Infrastructure.
Reference |
Feature |
Type |
Description |
---|---|---|---|
infra.svc.stg.001 |
Object storage |
Yes/No |
Object storage service (for example, S3-compatible). |
Table 5-7: Cloud Infrastructure platform services.
Platform service category |
Platform service examples |
---|---|
Data stores/databases |
Ceph, etcd, MongoDB, Redis |
Streaming and messaging |
Apache Kafka, Rabbit MQ |
Load balancer and service proxy |
Envoy, Istio, NGINX |
Service mesh |
Envoy, Istio |
Security and compliance |
Calico, cert-manager |
Monitoring |
Prometheus, Grafana (for visualisation), Kiali (for service mesh) |
Logging |
Fluentd, ElasticSearch (Elastic.io, Open Distro), ELK Stack (Elasticsearch, Logstash, and Kibana) |
Application definition and image build |
Helm |
CI/CD |
Argo, GitLab, Jenkins |
Ingress/egress controllers |
Envoy, Istio, NGINX |
Network related services |
CoreDNS, Istio |
Coordination and service discovery |
CoreDNS, etcd, Zookeeper |
Automation and configuration |
Ansible |
Key management |
Vault |
Tracing |
Jaeger |
Table 5-7a: Service examples.
5.1.5.1. Platform services - load balancer requirements¶
The table below specifies a set of requirements for the load balancer platform service.
Reference |
Requirement |
Notes |
---|---|---|
pas.lb.001 |
The load balancer must support workload resource scaling. |
|
pas.lb.002 |
The load balancer must support resource resiliency. |
|
pas.lb.003 |
The load balancer must support scaling and resiliency in the local environment. |
Local environment: within a subnet, tenant network, Availability Zone of a cloud, … |
pas.lb.004 |
The load balancer must support OSI Level 3/4 load balancing. |
Specifically, OSI Level 3 load balancing decisions on the source and destination IP addresses, and OSI Level 4 TCP port numbers. |
pas.lb.005 |
The load balancer must, at a minimum, support round-robin load balancing. |
|
pas.lb.006 |
The load balancer must create event logs with the appropriate severity levels (catastrophic, critical, and so on). |
|
pas.lb.007 |
The load balancer must support monitoring of endpoints. |
|
pas.lb.008 |
The load balancer must support Direct Server Return (DSR). |
Other modes can also be supported, but DSR should always be supported. |
pas.lb.009 |
The load balancer must support stateful TCP load balancing. |
|
pas.lb.010 |
The load balancer must support UDP load-balancing. |
|
pas.lb.011 |
The load balancer must support load balancing and the correct handling of fragmented packets. |
|
pas.lb.012 |
The load balancer may support stateful SCTP load balancing. |
|
pas.lb.013 |
The load balancer may support stateful M-TCP load balancing. |
|
pas.lb.014 |
The load balancer may support Level 7 load balancing. |
Application characteristics-based OSI Level 7 should support HTTP and HTTPS. |
pas.lb.015 |
The L7 load balancer may support HTTP2. |
|
pas.lb.016 |
The L7 load balancer may support HTTP3. |
|
pas.lb.017 |
The L7 load balancer may support QUIC. |
Table 5-7b: Platform services - load balancer requirements.
5.1.5.2. Platform services - log management service (LMS)¶
The table below specifies a set of requirements for the log management service (LMS).
Reference |
Requirement |
Notes |
---|---|---|
pas.lms.001 |
The LMS must support log management from multiple distributed sources. |
|
pas.lms.002 |
The LMS must manage log rotation at configurable periods. |
|
pas.lms.003 |
The LMS must manage log rotation at configurable log file status (%full). |
|
pas.lms.004 |
The LMS must manage archival and retention of logs for configurable periods by different log types. |
|
pas.lms.005 |
The LMS must ensure log file integrity (no changes, particularly changes that may affect the completeness, consistency, and accuracy, including event times, of the log file content). |
This is covered by req.sec.mon.005: “The Prod-Platform and NonProd- Platformmust secure and protect all logs (containing sensitive information) both in-transit and at rest.” |
pas.lms.006 |
The LMS must monitor log rotation and log archival processes. |
|
pas.lms.007 |
The LMS must monitor the logging status of all the log sources. |
|
pas.lms.008 |
The LMS must ensure that the clock of each logging host is synchronized to a common time source. |
|
pas.lms.009 |
The LMS must support the reconfiguring of logging as needed, based on policy changes, technology changes, and other factors. |
|
pas.lms.010 |
The LMS must support the documenting and reporting of anomalies in log settings, configurations, and processes. |
|
pas.lms.011 |
The LMS must support the correlating of entries from multiple logs that relate to the same event. |
|
pas.lms.012 |
The LMS must support the correlating of multiple log entries from a single source or multiple sources, based on logged values (for example, event types, timestamps, and IP addresses). |
|
pas.lms.013 |
The LMS should support rule-based correlation. |
Table 5-7c: Platform services - log management service (LMS) requirements
5.1.5.3. Platform services - monitoring service requirements¶
The table below specifies a set of requirements for the monitoring service (aka monitoring system).
Reference |
Requirement |
Notes |
---|---|---|
pas.mon.001 |
The monitoring service must be able to collect data generated by or collected from any resource (physical and virtual infrastructure, application, network, and so on). |
Ability to monitor applications, services, operating systems, network protocols, system metrics, and infrastructure components. |
pas.mon.002 |
The monitoring service must be able to aggregate the collected data. |
|
pas.mon.003 |
The monitoring service must be able to correlate data from different systems. |
|
pas.mon.004 |
The monitoring service must be able to perform active or passive monitoring, or both. |
|
pas.mon.005 |
The monitoring service must support the configuration of thresholds, outside which the resource cannot function normally, for alert generation. |
|
pas.mon.006 |
The monitoring service must support the configuration of alert notification media (such as email, SMS, phone, and so on). |
|
pas.mon.007 |
The monitoring service must support configurable realerting after a configurable period, if the metric remains outside the threshold. |
|
pas.mon.008 |
The monitoring service must support configurable alert escalations. |
|
pas.mon.009 |
The monitoring service must support alert acknowledgments by disabling the future alerting of the same resource/reason. |
|
pas.mon.010 |
The monitoring service must support the selective enabling and disabling of alerts by resource, category of resources, and lengths of time. |
|
pas.mon.011 |
The monitoring service must publish its APIs for programmatic invocation of all monitoring service functions. |
|
pas.mon.012 |
The monitoring service must itself be monitored through a logging service. |
|
pas.mon.013 |
The monitoring service should be implemented for high availability to ensure the non-stop monitoring of critical infrastructure components. |
|
pas.mon.014 |
The monitoring service should run separately from production services. |
|
pas.mon.015 |
A failure of the monitoring of the system should not cause a failure in the monitoring service. |
|
pas.mon.016 |
An inoperative monitoring service should not generate alerts about the monitored system. |
|
pas.mon.017 |
The monitoring service should provide a consolidated view of the entire monitored infrastructure. |
View: dashboard or report |
Table 5-7d: Platform services - monitoring service requirements
5.2. Features and requirements of the Cloud Infrastructure software profiles¶
This section details the Cloud Infrastructure software profiles and the associated configurations for the two types of Cloud Infrastructure profiles: Basic and High Performance.
5.2.1. Virtual compute¶
Table 5-8 depicts the features and configurations related to virtual compute for the two Cloud Infrastructure profiles.
Reference |
Feature |
Type |
Basic |
High performance |
---|---|---|---|---|
infra.com.cfg.001 |
CPU allocation ratio |
<value> |
N:1 |
1:1 |
infra.com.cfg.002 |
NUMA alignment |
Yes/No |
N |
Y |
infra.com.cfg.003 |
CPU pinning |
Yes/No |
N |
Y |
infra.com.cfg.004 |
Huge pages |
Yes/No |
N |
Y |
infra.com.cfg.005 |
Simultaneous multithreading (SMT) |
Yes/No/Optional |
Y |
Optional |
Table 5-8: Virtual compute features and configuration for the two types of Cloud Infrastructure profiles
Table 5-9 lists the features related to compute acceleration for the high-performance profile. The table also lists the applicable Profile extensions and extra specifications that may need to be specified.
Reference |
Feature |
Profile-Extensions |
Profile extra specs |
---|---|---|---|
infra.com.acc.cfg.001 |
IPSec acceleration |
Compute-intensive GPU |
|
infra.com.acc.cfg.002 |
Transcoding acceleration |
Compute-intensive GPU |
Video transcoding |
infra.com.acc.cfg.003 |
Programmable acceleration |
Firmware-programmable adapter |
accelerator |
infra.com.acc.cfg.004 |
GPU |
Compute-intensive GPU |
|
infra.com.acc.cfg.005 |
FPGA/other acceleration H/W |
Firmware-programmable adapter |
Table 5-9: Virtual compute acceleration features
5.2.2. Virtual storage¶
Table 5-10 and Table 5-11 depict the features and configurations related to virtual storage for the two Cloud Infrastructure profiles.
Reference |
Feature |
Type |
Basic |
High performance |
---|---|---|---|---|
infra.stg.cfg.001 |
Catalogue storage types |
Yes/No |
Y |
Y |
infra.stg.cfg.002 |
Storage block |
Yes/No |
Y |
Y |
infra.stg.cfg.003 |
Storage with replication |
Yes/No |
N |
Y |
infra.stg.cfg.004 |
Storage with encryption |
Yes/No |
Y |
Y |
Table 5-10: Virtual storage features and configuration for the two profiles
Table 5-11 depicts the features related to virtual storage acceleration.
Reference |
Feature |
Type |
Basic |
High performance |
---|---|---|---|---|
infra.stg.acc.cfg.001 |
Storage IOPS oriented |
Yes/No |
N |
Y |
infra.stg.acc.cfg.002 |
Storage capacity oriented |
Yes/No |
N |
N |
Table 5-11: Virtual storage acceleration features.
5.2.3. Virtual networking¶
Table 5-12 and Table 5-13 depict the features and configurations related to virtual networking for the two types of Cloud Infrastructure profiles.
Reference |
Feature |
Type |
Basic |
High performance |
---|---|---|---|---|
infra.net.cfg.001 |
Connection point interface |
IO virtualisation |
virtio1.1 |
virtio1.1* |
infra.net.cfg.002 |
Overlay protocol |
Protocols |
VXLAN, MPLSoUDP, GENEVE, other |
VXLAN, MPLSoUDP, GENEVE, other |
infra.net.cfg.003 |
NAT |
Yes/No |
Y |
Y |
infra.net.cfg.004 |
Security group |
Yes/No |
Y |
Y |
infra.net.cfg.005 |
Service function chaining |
Yes/No |
N |
Y |
infra.net.cfg.006 |
Traffic patterns symmetry |
Yes/No |
Y |
Y |
Table 5-12: Virtual networking features and configuration for the two types of SW profiles
Note: * might have other interfaces (such as SR-IOV VFs to be directly passed to a VM or a Pod) or NIC-specific drivers on guest machines transiently allowed until mature enough solutions are available with a similar efficiency level (for example, regarding CPU and energy consumption).
Reference |
Feature |
Type |
Basic |
High performance |
---|---|---|---|---|
infra.net.acc.cfg.001 |
vSwitch optimisation (DPDK) |
Yes/No and SW optimisation |
N |
Y |
infra.net.acc.cfg.002 |
SmartNIC (for HW Offload) |
Yes/No/Optional |
N |
Optional |
infra.net.acc.cfg.003 |
Crypto acceleration |
Yes/No/Optional |
N |
Optional |
infra.net.acc.cfg.004 |
Crypto acceleration interface |
Yes/No/Optional |
N |
Optional |
Table 5-13: Virtual networking acceleration features
5.3. Cloud Infrastructure hardware profile description¶
The support of various workload types, each with different, and sometimes conflicting, compute, storage, and network characteristics, including accelerations and optimizations, drives the need to aggregate these characteristics as a hardware (host) profile and capabilities. A host profile is a “personality” assigned to a compute host (also known as physical server, compute host, host, node, or pServer). The host profiles and related capabilities consist of the intrinsic compute host capabilities, such as the number of CPU sockets, the number of cores per CPU, RAM, local disks and their capacity, and so on, as well as capabilities enabled in the hardware/BIOS, specialized hardware, such as accelerators, the underlay networking, and storage.
This chapter defines a simplified host, profile, and related capabilities model associated with each of the different Cloud Infrastructure hardware profile and related capabilities. The two Profiles, Profile Extensions & Flavours (also known as host profiles, node profiles, and hardware profiles), and some of their associated capabilities, are shown in Figure 5.4.
The profiles can be considered to be the set of Enhanced Performance Awareness (EPA)-related configurations on Cloud Infrastructure resources.
Note: In this chapter we will not list all of the EPA-related configuration parameters.
A given host can only be assigned a single host profile. A host profile can be assigned to multiple hosts. In addition to the host profile, Profiles and workload flavours, and additional capability specifications for the configuration of the host can be specified. Different cloud service providers (CSPs) may use different naming standards for their host profiles. For the profiles to be configured, the architecture of the underlying resource needs to be known.
Ref |
Cloud Infrastructure resource |
Type |
Definition/Notes |
Capabilities reference |
---|---|---|---|---|
infra.hw.001 |
CPU architecture |
<value> |
Values such as x64, ARM, and so on. |
|
The host profile properties are specified in the following subsections. The following diagram (Figure 5.5) represents a high-level abstraction of a physical server (host).
5.4. Features and requirements of the Cloud Infrastructure hardware profiles¶
The configurations specified in this section are used to specify the hardware profile configurations for each of the Cloud Infrastructure hardware profiles depicted in Figure 5-4.
5.4.1. Compute resources¶
Reference |
Feature |
Description |
Basic |
High performance |
---|---|---|---|---|
infra.hw.cpu.cfg.001 |
Minimum number of CPU sockets |
This feature specifies the minimum number of populated CPU sockets within each host (*). |
2 |
2 |
infra.hw.cpu.cfg.002 |
Minimum number of cores per CPU |
This feature specifies the number of cores needed per CPU (*). |
20 |
20 |
infra.hw.cpu.cfg.003 |
NUMA alignment |
NUMA alignment is enabled and BIOS is configured to enable NUMA. |
N |
Y |
infra.hw.cpu.cfg.004 |
Simultaneous Multithreading (SMT) |
SMT is enabled, allowing each core to work multiple streams of data simultaneously. |
Y |
Y |
Table 5-14: Minimum sizing and capability configurations for general purpose servers
(*) These specifications are for general purpose servers normally located in large data centres. Servers for specialised use with the data centres or other locations, such as at edge sites, are likely to have different specifications.
5.4.1.1. Compute acceleration hardware specifications¶
Reference |
Feature |
Description |
Basic |
High performance |
Capabilities reference |
---|---|---|---|---|---|
infra.hw.cac.cfg.001 |
GPU |
GPU |
N |
Optional |
|
infra.hw.cac.cfg.002 |
FPGA/other acceleration HW |
HW accelerators |
N |
Optional |
|
Table 5-15: Compute acceleration configuration specifications
5.4.2. Storage configurations¶
Reference |
Feature |
Description |
Basic |
High performance |
---|---|---|---|---|
infra.hw.stg.hdd.cfg.001* |
Local storage HDD |
Hard disk drive |
||
infra.hw.stg.ssd.cfg.002* |
Local storage SSD |
Solid state drive |
Recommended |
Recommended |
Table 5-16: Storage configuration specification
Note: *These are specified local storage configurations including # and capacity of storage drives.
5.4.3. Network resources¶
5.4.3.1. NIC configurations¶
Reference |
Feature |
Description |
Basic |
High performance |
---|---|---|---|---|
infra.hw.nic.cfg.001 |
NIC ports |
Total number of NIC ports available in the host. |
4 |
4 |
infra.hw.nic.cfg.002 |
Port speed |
Port speed, in Gbps (minimum values). |
10 |
25 |
Table 5-17: Minimum NIC configuration specification
5.4.3.2. PCIe configurations¶
Reference |
Feature |
Description |
Basic |
High performance |
---|---|---|---|---|
infra.hw.pci.cfg.001 |
PCIe slots |
Number of PCIe slots available in the host. |
8 |
8 |
infra.hw.pci.cfg.002 |
PCIe speed |
Gen 3 |
Gen 3 |
|
infra.hw.pci.cfg.003 |
PCIe lanes |
8 |
8 |
Table 5-18: PCIe configuration specifications
5.4.3.3. Network acceleration configurations¶
Reference |
Feature |
Description |
Basic |
High performance |
Capabilities Reference |
---|---|---|---|---|---|
infra.hw.nac.cfg.001 |
Crypto acceleration |
IPSec, Crypto. |
N |
Optional |
|
infra.hw.nac.cfg.002 |
SmartNIC |
Offloads network functionality. |
N |
Optional |
|
infra.hw.nac.cfg.003 |
Compression |
Optional |
Optional |
||
infra.hw.nac.cfg.004 |
SR-IOV over PCI-PT |
SR-IOV |
N |
Optional |
|
Table 5-19: Network acceleration configuration specification
